WrightWall insulated panel system

Precision engineered timber frame for high performance building envelopes

WrightWall is a premium pre-fabricated timber wall solution designed to integrate seamlessly with oak frame structures or serve as a standalone high performance building envelope. Combining traditional craftsmanship with modern precision engineering, this system delivers exceptional thermal performance and structural integrity for both residential and commercial projects.

Features of WrightWall

2310 108 b E Oakwrights Mark Watts Feature

Design flexibility

Accommodates a wide range of architectural expressions from traditional to contemporary.

25 04 062 Elements Encap Oakwrights Feature

Integrated services

Our panels are crafted with factory fitted service voids.

2044 3895 b Oakwrights Oakwrights Feature

Window integration

Off-site installation of windows within our panels by our joinery team, accelerates site progress and ensures accurate fit. See our Joinery data sheet for more information.

Panel System Diagram 18 A Elements Feature 002

Speed of construction

Significantly reduced on-site assembly time.

25 04 055 Elements Encap Oakwrights Feature

Quality assurance

Workshop-controlled manufacturing environment ensures consistent quality.

2044 3837 b Oakwrights Oakwrights Feature

Weather independence

Reduced weather exposure during construction. Reaching a dry shell quicker.

Customisation

Bespoke panel designs to meet specific project requirements.

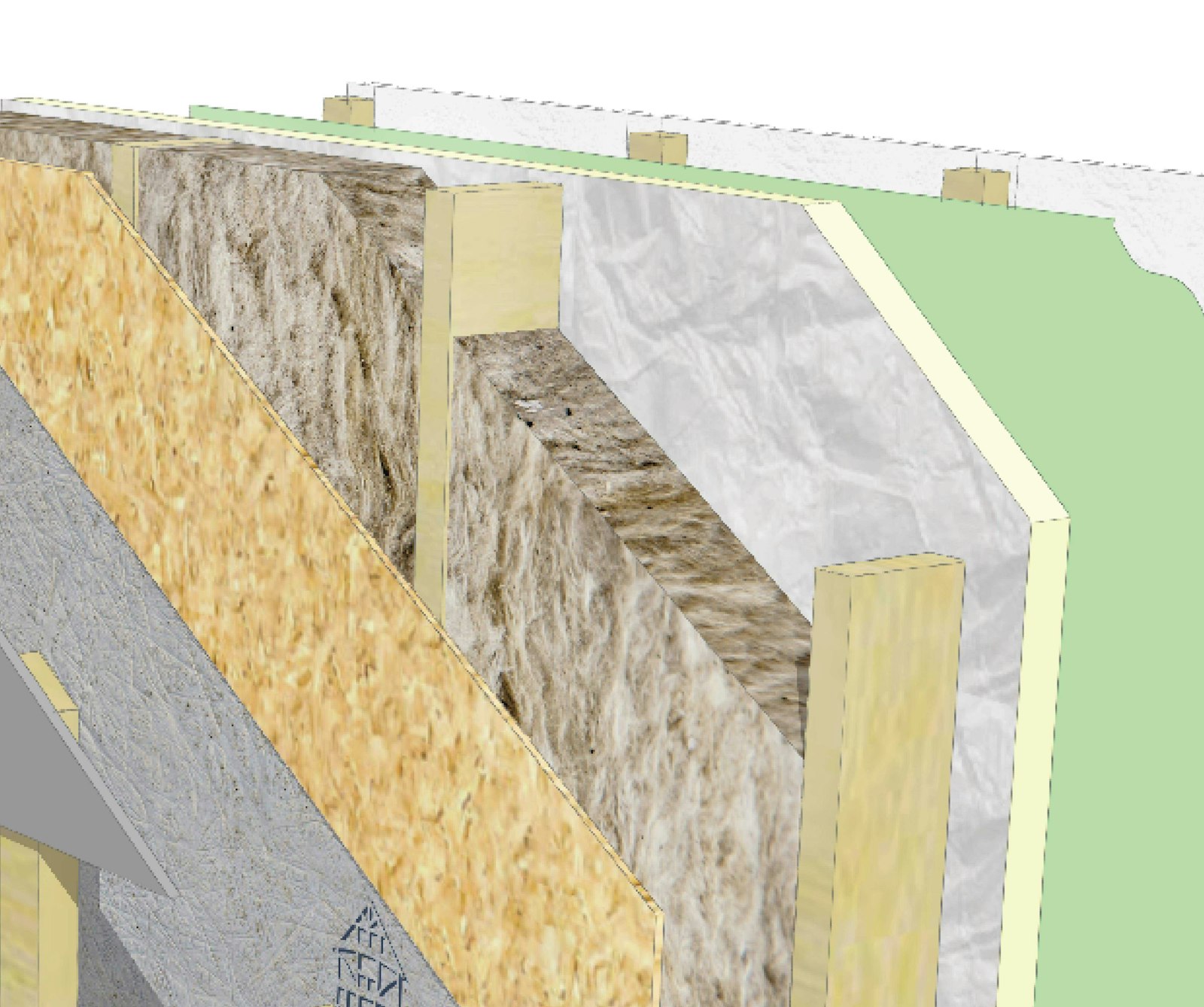

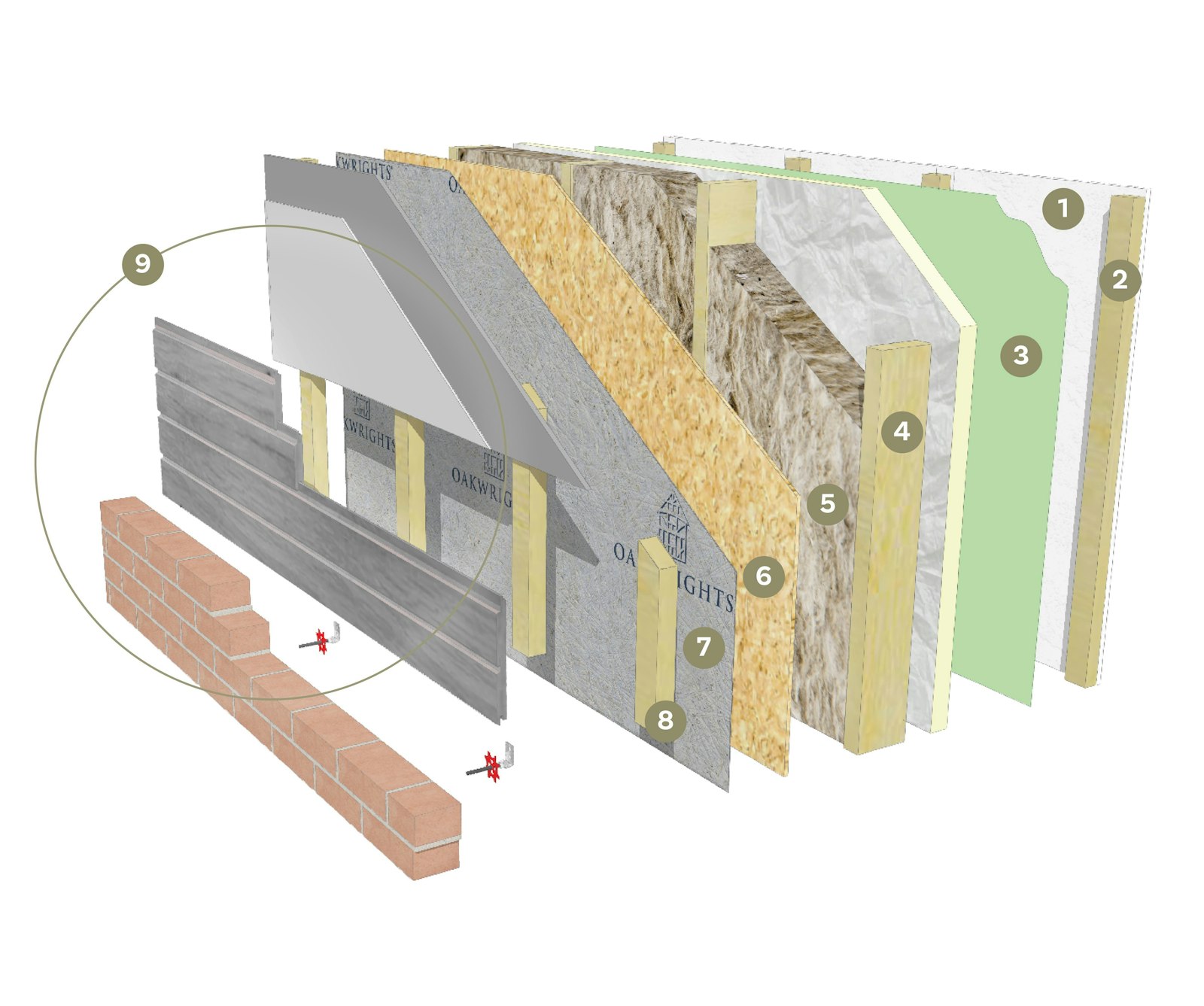

What's in our WrightWall system?

Performance data

Property

Value / Information

U-value (Typical)

0.17W/m²K

Panel thickness (Typical)

237mm (not including external and interior finishes).

Fire resistance

Fire approved to BS EN 1365-1:2012 (load bearing wall) and BS EN 1363.1:2020.

Vapour permeability

Highly breathable system / the assessment reveals no risk for condensation within the build-up.

Embodied carbon

Significantly lower than conventional wall systems.

Compliance & compatibility

Compatible with: our WrightRoof system, AeroBarrierUK and our full product portfolio, including face glazing and joinery.
Standards: designed to exceed UK Building Regulations.
STA Assure Gold certified
